Type 2NRCS LOASANS 61643-11

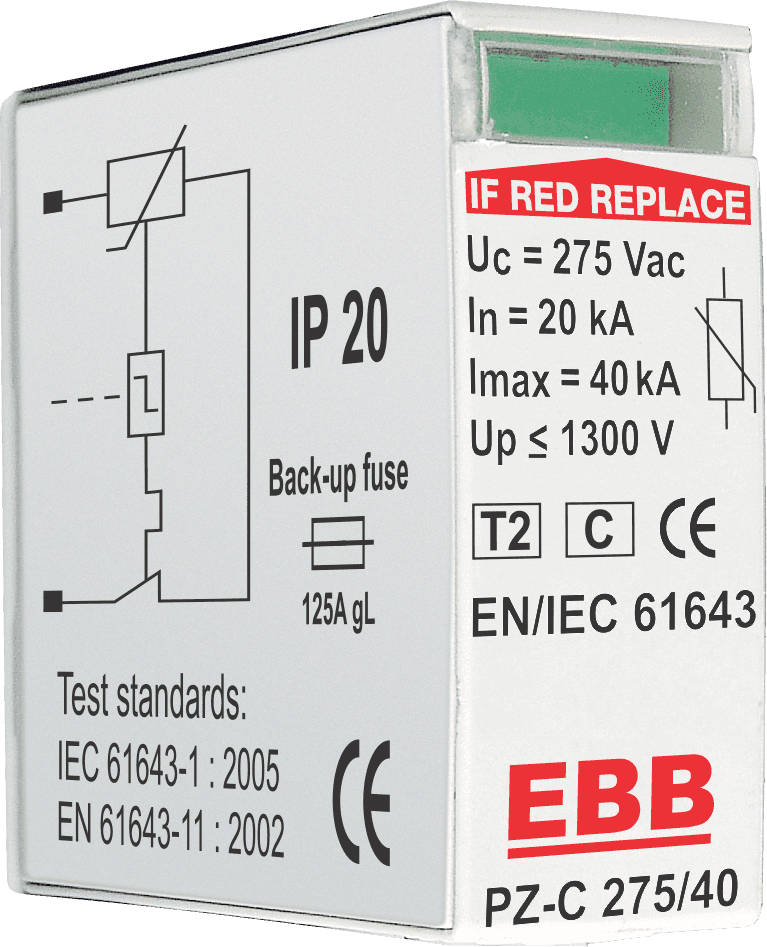

PZ-C 275/40 MODULE
Type 2 / Class II · 8/20 µs · 1P
Replaceable plug-in MOV cartridge — the directly tested PZ-C 275/40 component that slots into the base on end-of-life.
Best installed at: Any installed PZ-C 275/40 base whose module flag shows end-of-life; swap the cartridge without rewiring.
Uc (V)
275 V
Max. continuous operating voltage
In (kA)
20 kA
Nominal discharge current (8/20 µs)
Imax (kA)
40 kA
Max. discharge current (8/20 µs)
Up (kV)
≤1.2 kV
Voltage protection level
Poles
1P
Pole configuration
Housing
Module cartridge
DIN-rail mounting width
Decode this SKU
PZ-C
Family / Type
275V
Uc — max. voltage
40kA
Imax — 8/20µs
1P
Pole configuration
Trade & project pricing on application
Trade & project pricing on application — competitive on imported equivalents
✓ Stocked in Joburg · Ships same / next day · POPIA-safe enquiry
Variants in the PZ-C 275/40 series
Same tested protection circuit — pick the pole configuration and signalling option that matches your board.
| Product | EBB Code | Ucmax. cont. V | Iimp10/350 µs | In8/20 µs | Imax8/20 µs | Upprot. level | Housingwidth | Variant |
|---|---|---|---|---|---|---|---|---|
| PZ-C 275/40 | C211011 | 275 V | — | 20 kA | 40 kA | ≤1.2 kV | 18 mm DIN | base |
| PZ-C 275/40RRemote signalling variant | C211011A | 275 V | — | 20 kA | 40 kA | ≤1.2 kV | 18 mm DIN | Remote signalling variantremote |
| PZ-C 275/40 MODULE | C211011M | 275 V | — | 20 kA | 40 kA | ≤1.2 kV | Module cartridge | module |
Certified, not promised
Compliance & test reports
- NRCS Letter of Approval
- ZAF-RCC-0029482
- Test report
- CTI-PA 3478-3
- Standard
- IEC 61643-1/11
- SA compliance
- SANS 61643-11
- Manufacturing standard
- ISO 9001 · EU-manufactured since 1983
- EBB product code
- C211011M
Full test reports and certificates available on the Compliance page.
Replacement module
This is a plug-in replacement cartridge, not a standalone device. The base unit must already be installed. When the module's end-of-life flag triggers, swap only this cartridge — no rewiring required.
